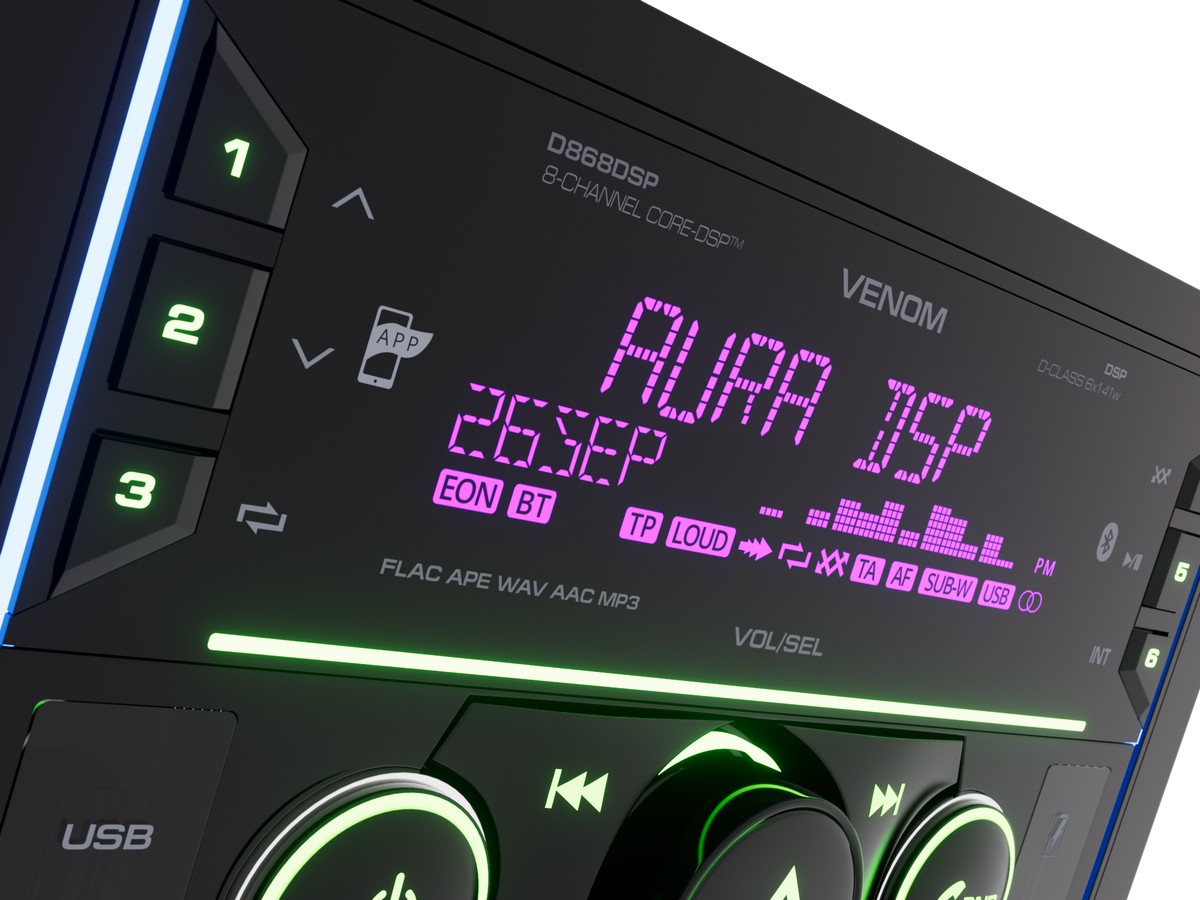

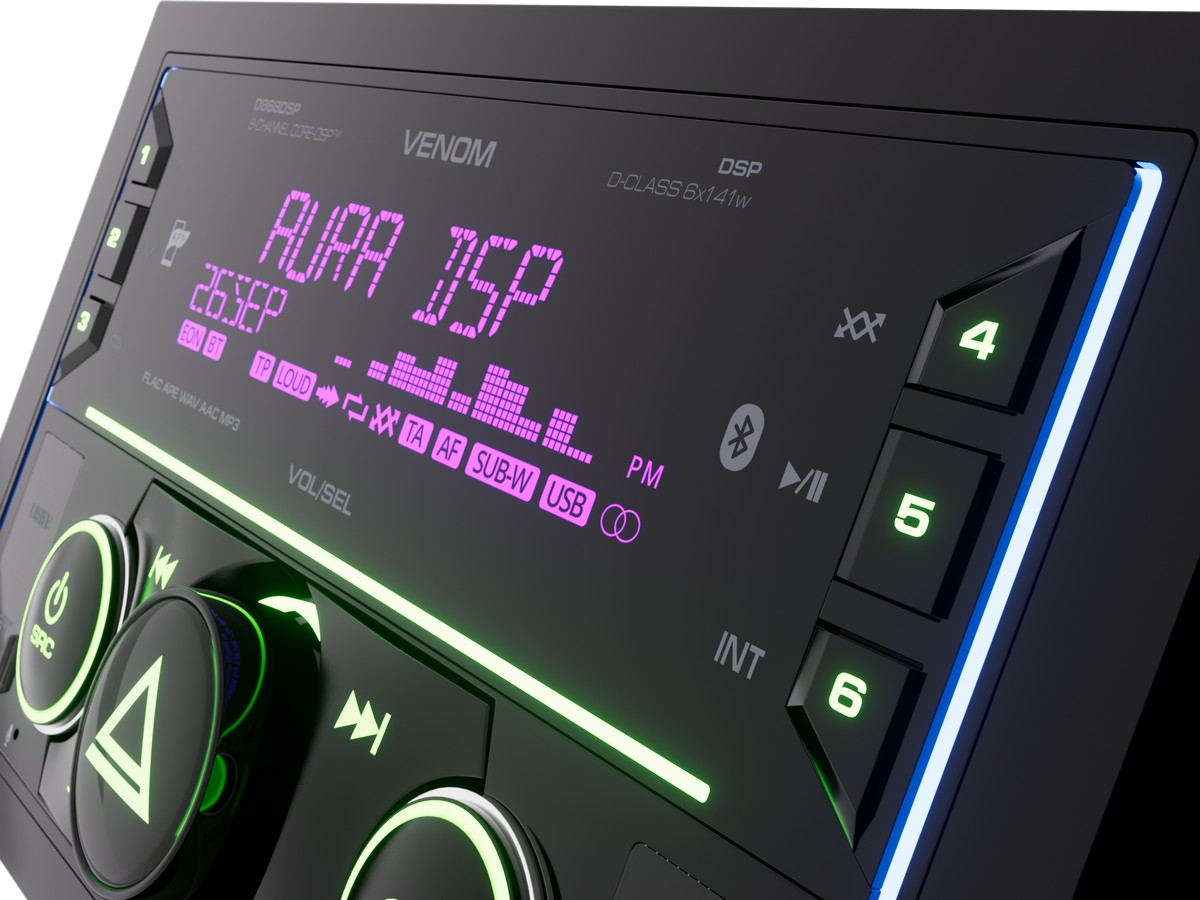

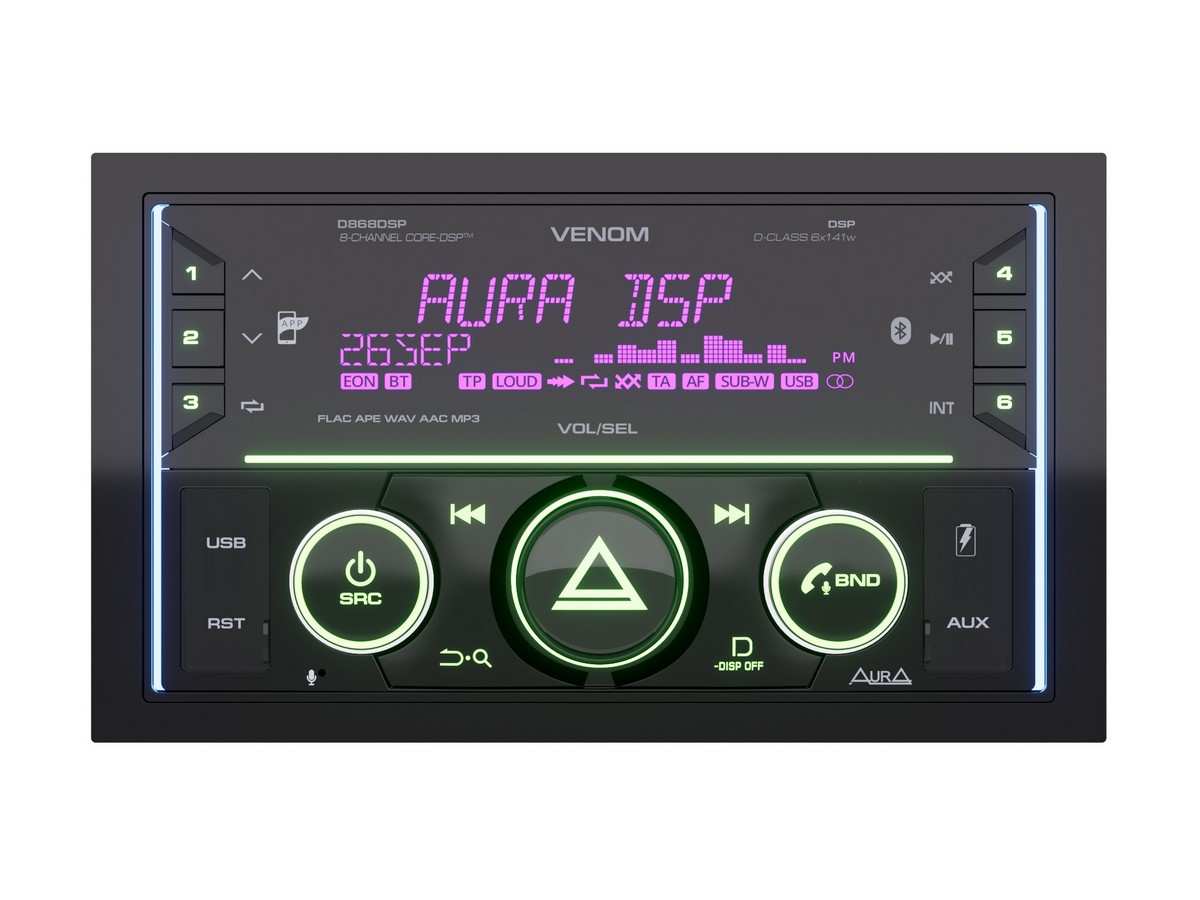

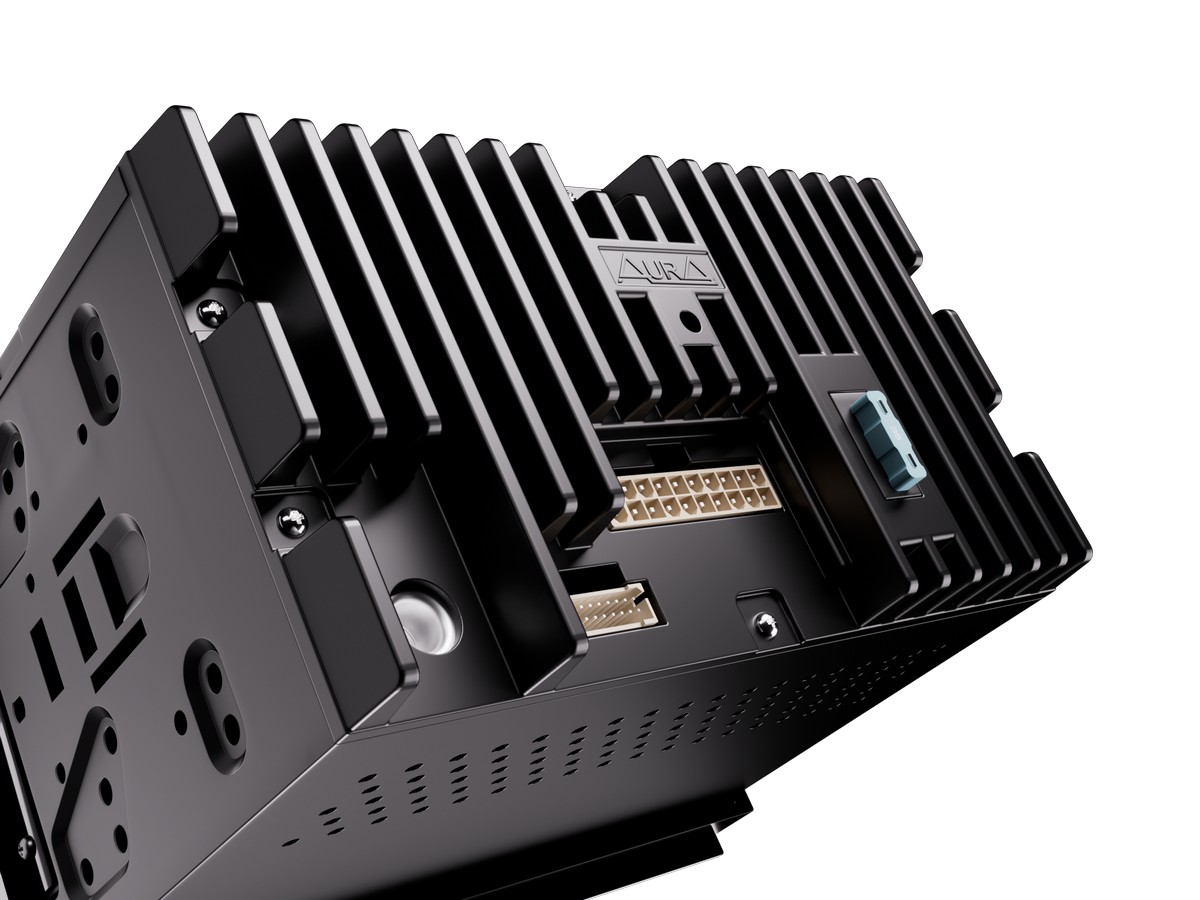

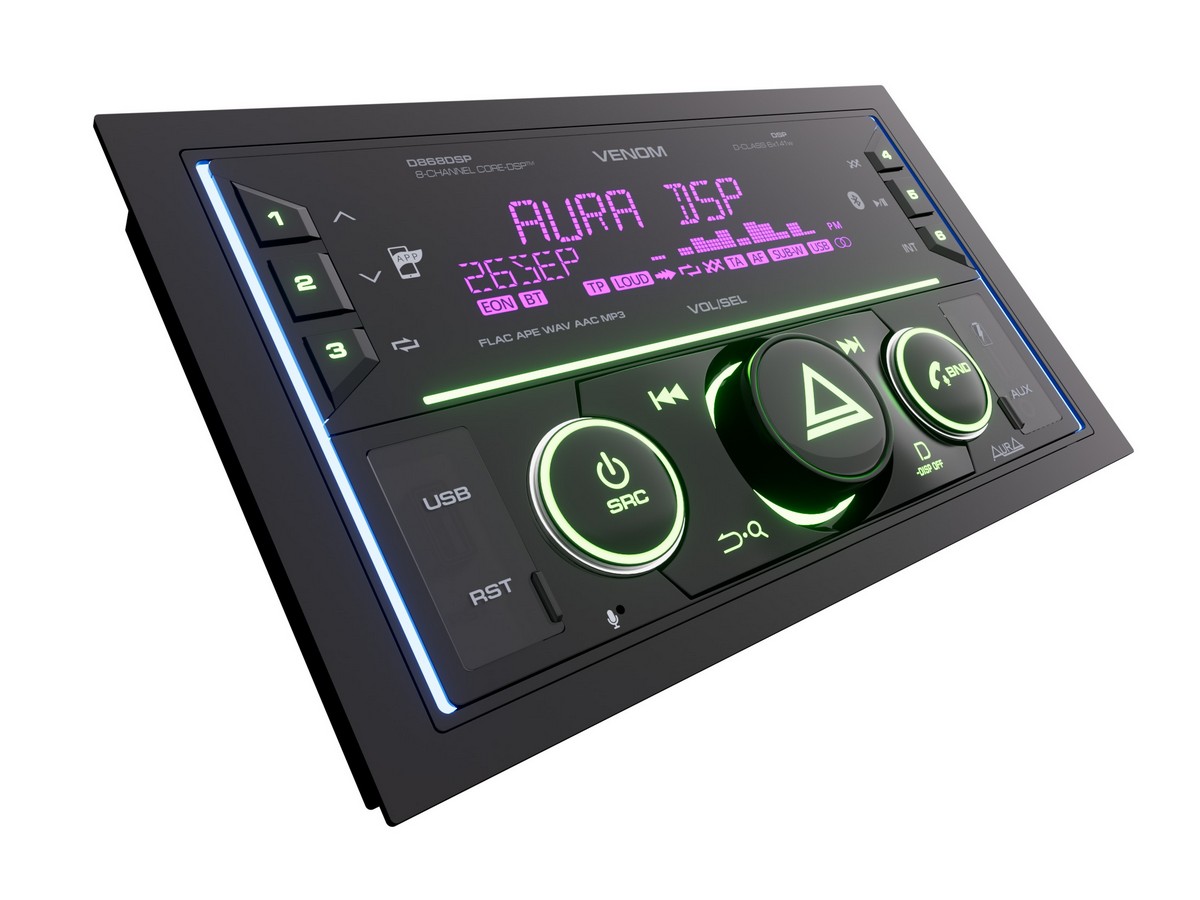

VENOM-D868DSP

2-DIN car processor BT/USB/FM receiver
Powerful built-in D-class amplifier.

Maximum output power: 6×141W
Nominal output power (with THD less than 1%): 6×71W
Minimum speaker impedance: 4 Ohms

USB connector with charging current: up to 1.2A
Reading audio formats: Hi-res FLAC (24 bit/48kHz), MP3, WAV, APE, AAC
RCA outputs: 4 pairs (8 channels)
Maximum amplitude of the RCA output signal: up to 6 volts

PLATFORM: CORE-DSP

PRO setup mode
Per-channel time correction of the sound field (Time Alignment)
48-band parametric equalizer
Q-factor adjustment for each of the bands

8-band crossover:
1-6 channels: HPF (high-pass filter) / LPF (low-pass filter): 20 Hz — 12.5 kHz / Disabled
7-8 channels: HPF (high-pass filter) / LPF (low-pass filter): 10 Hz – 800 Hz / Disabled

Roll-off slope: up to 48 dB per octave
Selectable filter type: Butterworth, Linkwitz-Riley, Bessel.

Stereo mode for 7-8 channels

Compatible with iOS and Android application
Built-in Bluetooth module (A2DP)

RGB backlight of the front panel (3 zones, 16 million colors)
D-SWC (training resistive buttons on the steering wheel without an external adapter)

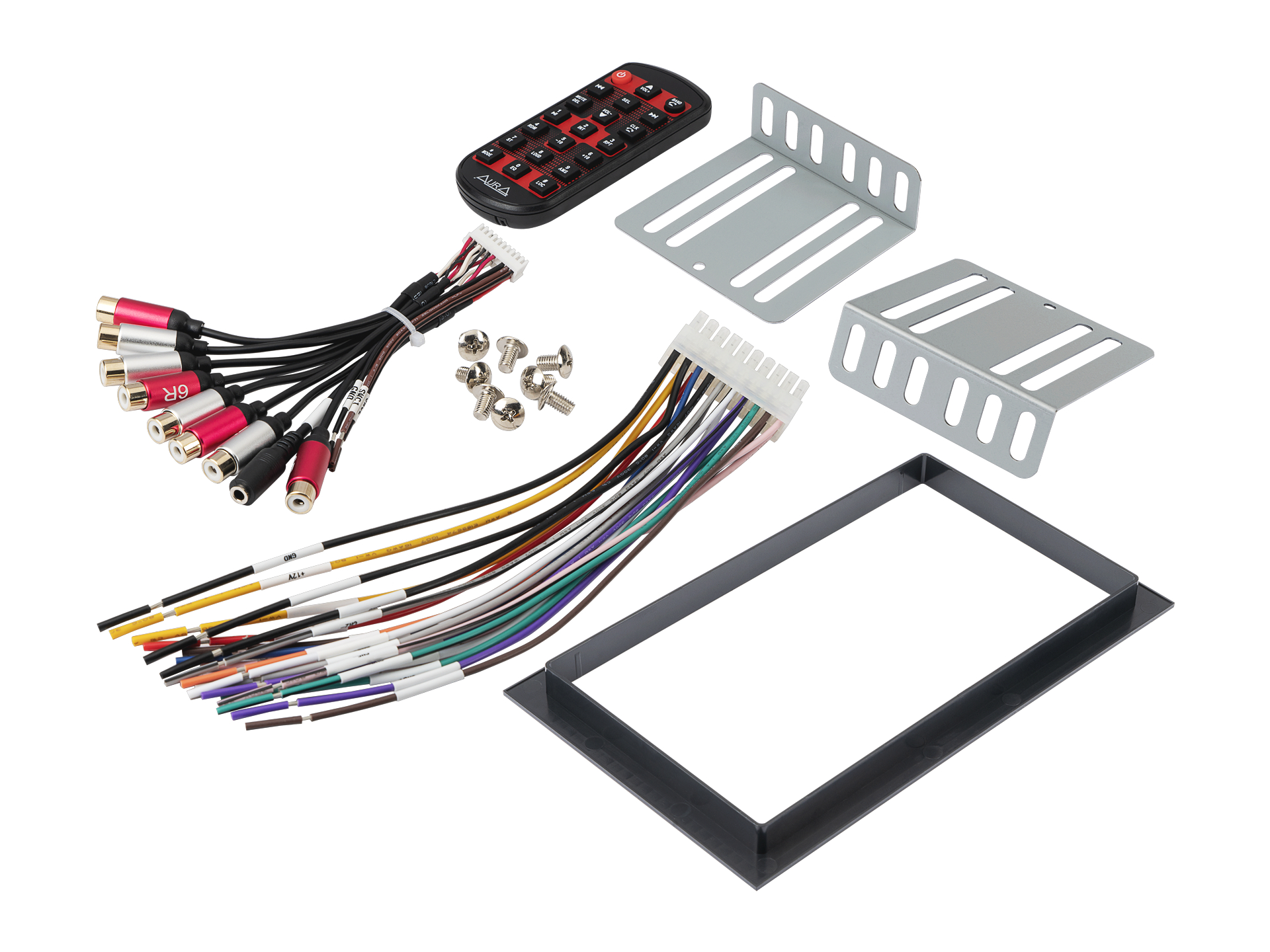

Remote control: included

ATTENTION!
The power wires must be connected DIRECTLY TO THE CORRESPONDING BATTERY TERMINALS using a copper cable with a cross-section of at least 4 mm (12GA)! Connection to the standard wiring or to the standard ISO connector is NOT ALLOWED!

EAN: 4680136866150
