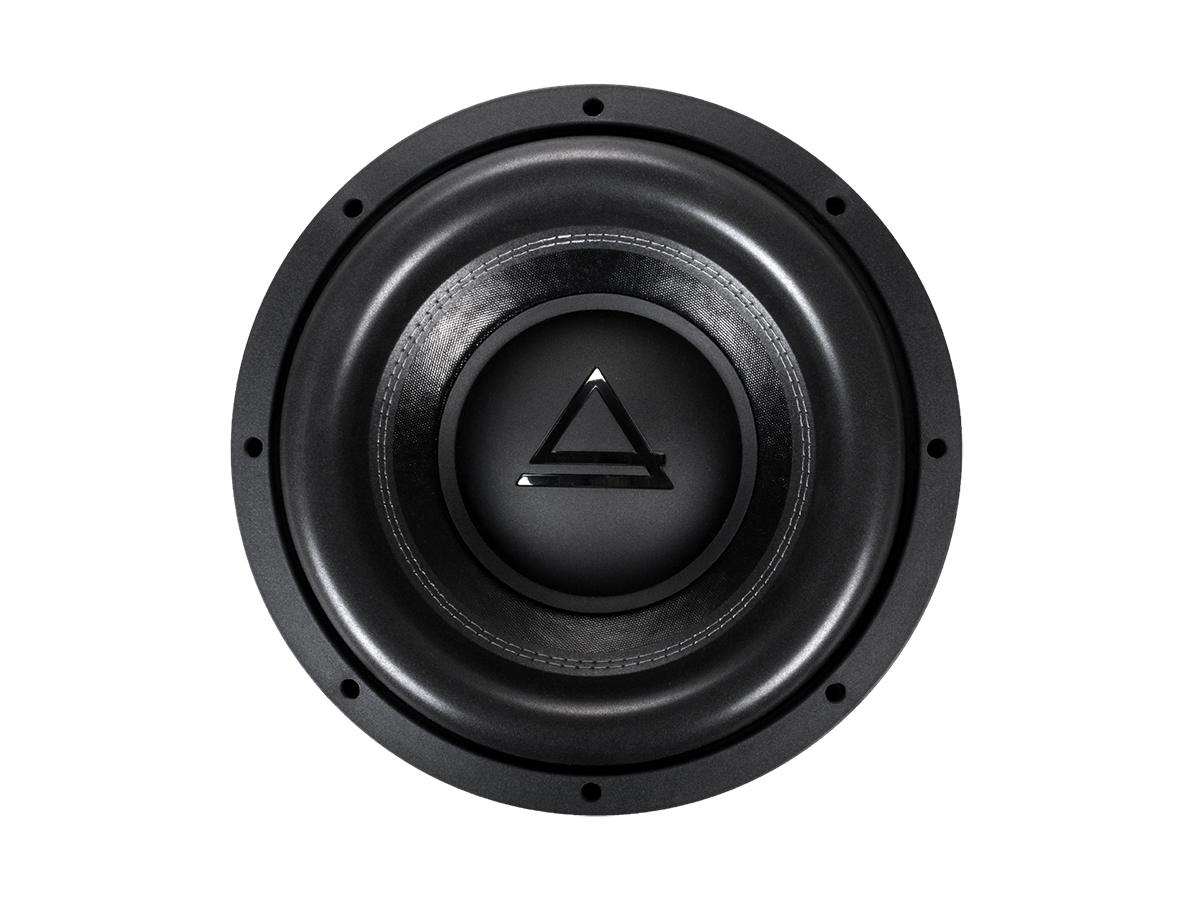

VENOM-12

Diameter: 12″ (30,5 cm)
Frame: Die cast spider cavity venting
Frame color: Black
Cone: Non pressed paper
Dust cap: Black plastic with logo
Surround: High durability compressed foam, stitched
Gasket: Rubber
Spider: 3pc. black NOMEX
Lead wire: Flat silver coated woven leads
T-Yoke: Chrome bumped backplate with vented pole piece
Voice coil: Black aluminium former, with round aluminium wire
Magnet: High-grade Y30 Ferrite magnet
Terminals: Integrated spring-loaded push terminals (8 AWG)

TECHNICAL DATA
Rated Power RMS: 1501w
Maximum Power: 3001w
Frequency Responce: 30-400Hz
Nominal Impedance: 2×2 Ohm
Sensitivity: 84,4dB
Voice Coil Diameter: 3″ (76mm)
Magnet weight: 220 Oz (6,2 kg)

QTS: 0,482, Vas: 38,57L, FO: 30Hz.

User manual

EAN: 4627171420961

CE certificate No.: B-E210536782

EMC Directive 2014/30/EU
